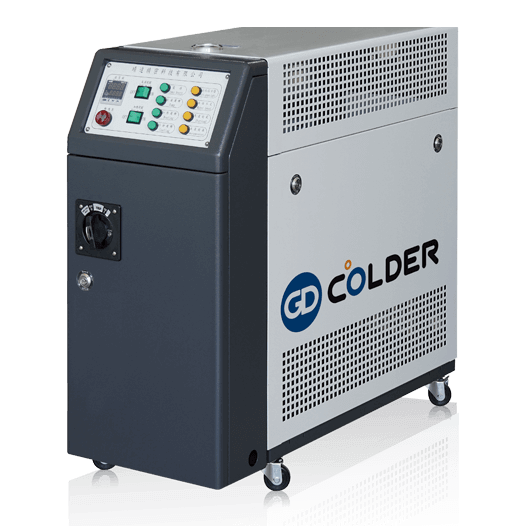

Oil-type Mold Temperature Controller

Name: Oil-type Mold Temperature Controller-GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System
Brand: GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System

MTO

Simple control panel and various indicators. Full digital P.I.D sectional contorl system to keep stable temperature.

Temp. Range	40~160±0.5℃

E-Catalog Add Inquiry

We Solve the Problem for Extra Heat from the Machine.

A Temperature Control Machine For You

Industrial Solutions For Cooling And Thermoregulation

Code Rule
Features
Appliations

MTO 140 05 / 06 D

1. 2. 3. 4. 5.

MTO: Oil Type Mold Temperature Controller
160: Temperature (℃)
05: Horsepower (HP)
06: Electric Heating (KW)
D: Double Temperature

Microprocessor control panel and various indicators.
Full digital P.I.D. sectional control system to keep stable temperature.
Perfect anti-shock device and feet wheel design.
Power source lack-phase protection,pump overload protection,temperature superheat protection,automatic hydration,automatic air discharge,pressure-relief circuit,multiple safety protection system.The operation is strong like rocks.
International well-known brand pump, high E.E.R.
Improve the yield rate due to the accurate control.
Accurate temperature (±0.5℃).
Low viscosity of water makes it heat up quickly.
Heat transfer oil which has the feature of high boiling point is suitable for the high temperature type.

The plastic hollow molding/plastics runner film roller cooling.
Plastic injection and punching molding cooling.
All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
Laser cutting & marking machine.
Semiconductor and electron Instruments, ultrasonic cleaning equipment.
All kind of machine processes liquid cooling.

Temperature Control Machine

Model / Specification

MTO16005/06 MTO16010/09

Model		MTO16005/06
Maximun Temperature	℃	160
Pump	50/60Hz (Hp/Kw)	0.5/0.35
Electric Heating	Kw	6.0
Total Electricity Power	Kw	6.35
Flow Rate	L/min	27/32
Pressure	kg/cm²	4.5/6.0
Inlet/Outlet	Boiling Water	½"
Inlet/Outlet	Cooling Water	½"
Size	mm (D x W x H)	680 x 300 x 700
Weight	Kg	85

Mold temperature machine / temperature control machine is a customized machine, you can explain your needs with us and adjust the specifications for you.

The company reserves the right to modify the design and technical parameters without prior notice.

Model		MTO16010/09
Maximun Temperature	℃	160
Pump	50/60Hz (Hp/Kw)	1/0.75
Electric Heating	Kw	9.0
Total Electricity Power	Kw	9.75
Flow Rate	L/min	40
Pressure	kg/cm²	6.8/8.8
Inlet/Outlet	Boiling Water	¾"
Inlet/Outlet	Cooling Water	½"
Size	mm (D x W x H)	800 x 330 x 750
Weight	Kg	95

Mold temperature machine / temperature control machine is a customized machine, you can explain your needs with us and adjust the specifications for you.

The company reserves the right to modify the design and technical parameters without prior notice.
