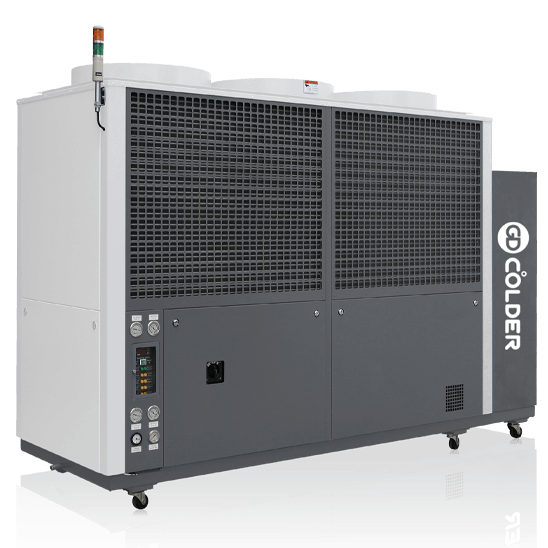

Air cooled chiller AT-360

Air cooled chiller

AT-360

Air-cooled engines rely on the circulation of air directly over heat dissipation fins or hot areas of the engine to cool them in order to keep the engine within operating temperatures.
High inductive electronic temperature control switch, and water pump, easy control the manu-facturing process liquid temperature(accuracy ± 0.5°C)

Air Cooled Chillers
Temp. Range 5~40°C (Indoor)
Humidity Range 40~80%
Cooling Capacity 84/105 KW

We Solve the Problem for Extra Heat from the Machine.

An Air Cooled Chillers For You

Industrial Solutions For Cooling And Thermoregulation

  • High inductive electronic temperature control switch, and water pump, easy control the manu-facturing process liquid temperature(accuracy ± 1°C)
  • With Euro-well-known brand compressor, low noise, high E.E.R
  • No need cooling water tower.
  • Stainless steel plank type heat exchanger. Significantly promote the cooling efficiency, can save 20% energy.
  • The cold storage trough can store surplus energy according to the demand.
  • Microprocessor control panel and breakdown indication lamp.
  • Multiple security protected device, postponed and automatic return home circulated function.
  • Have dual-temperature system for choice.
  • With open-type stainless steel water tank, easy to clean and maintain.
  • Can set water supply by manual or automatic method.
  • With perfect anti-shock device and feet wheel design, easy to move.
  • Use environmentally-friendly refrigerant R407C.
  • Use water for cooling liquid.
  • The water piping system includes high pressure rubber tube and stainless steel piping.
  • The electrical protection system includes no fuse magnetic switch, water level, against / lack phase, ultra-temp, and overload protection.
  • The remote control is AC220V and DC24V.
  • The color of machine is gray and white.
  • The plastic hollow molding/plastics runner film roller cooling.
  • Plastic injection and punching molding cooling.
  • All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
  • Laser cutting & marking machine.
  • Semiconductor and electron Instruments, ultrasonic cleaning equipment.
  • All kind of machine processes liquid cooling.
Air Cooled Chillers

Model / Specification

Model AT–360A
Temp. range 5~40°C(Indoor)
Humidity range 40~80%
Power 3 phase 220 / 380V 50 / 60Hz
Coolant R407
Cooling liquid Industrial Pure Water
Export temp 8~30°C ± 1°C
Cooling capacity
50/60Hz
Kcal-h 72,000/90,000
BTU-h 288,000/360,000
kw 84/105
Pump 50/60 Hz HP 5.5 / 8.0
Water flow L/min 450 / 550
Water pressure Kg 2.5 / 3.5
Water piping High pressure rubber tube, Stainless steel piping
Protection system No fuse magnetic switch, water level, against/lack phase, ultra-temp, overload protection
Compressor Kw 30
Cold-water inlet/outlet 2"
Remote control AC220V、DC 24V
Color Black+White
Dimension LxWxH mm 3,035 x 1,050 x 2,110
Water tank L 490
Weight kg 1,320

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.
