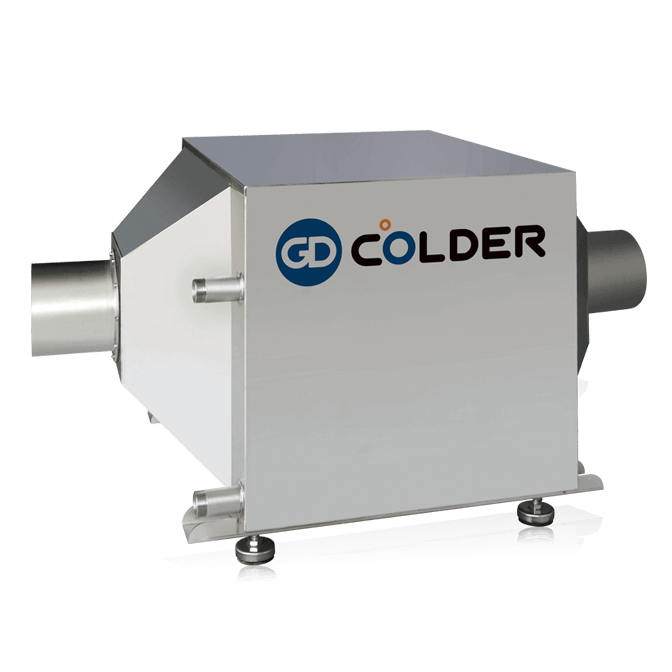

Positive Pressure Blown Film Cooler

Name: Positive Pressure Blown Film Cooler-GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System
Brand: GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System

BFC

Plastics extrusion is a high-volume manufacturing process in which raw plastic is melted and formed into a continuous profile. Extrusion produces items such as pipe/tubing, weatherstripping, fencing, deck railings, window frames, plastic films and sheeting, thermoplastic coatings, and wire insulation.

Add Inquiry

We Solve the Problem for Extra Heat from the Machine.

BFC-0120P~BFC-0510P BFC-0815P~BFC-1530P BFC-2040P~BFC-3060P

Model		BFC-0120P	BFC-0205P	BFC-0308P	BFC-0510P
Collocation windmill	HP	1	2	3	5
Collocation GIN-DAI chiller		AT-24B	AT-60A	AT-90A	AT-120A
Cold-wind export temperature	℃	12~30℃
Cold-wind ability Kcal/hr	50HZ	5,000	12,000	18,000	24,000
Cold-wind ability Kcal/hr	60HZ	6,000	15,000	22,500	30,000
Ventilation amount	CMM	7.5	13	19	25
Cold-wind Caliber	mm	ψ100	ψ125	ψ150	ψ150
Ice-water caliber	inch	3/4	1	1	1¼
Drain pipe caliber	inch	1/4	1/4	1/4	1/4
Dimension	mm	600×510×500	640×730×650	720×730×650	900×875×770
Weight	kg	45	130	150	170

Model		BFC-0815P	BFC-1020P	BFC-1525P	BFC-1530P
Collocation windmill	HP	8	10	15	15
Collocation GIN-DAI chiller		AT-180A	AT-240A	AT-300A	AT-360A
Cold-wind export temperature	℃	12~30℃
Cold-wind ability Kcal/hr	50HZ	34,000	48,000	60,000	72,000
Cold-wind ability Kcal/hr	60HZ	45,000	60,000	75,000	90,000
Ventilation amount	CMM	38	50	65	80
Cold-wind Caliber	mm	ψ150	ψ200	ψ250	ψ250
Ice-water caliber	inch	1½"	2	2½	2½
Drain pipe caliber	inch	1/2	1/2	1/2	1/2
Dimension	mm	990×875×770	1,100×1,010×940	1,250×1,010×940	1,330×1,010×940
Weight	kg	190	210	230	250

Model		BFC-2040P	BFC-2550P	BFC-3060P
Collocation windmill	HP	20	25	30
Collocation GIN-DAI chiller		AT-480A	AT-600A	AT-720A
Cold-wind export temperature	℃	12~30℃
Cold-wind ability Kcal/hr	50HZ	96,000	120,000	144,000
Cold-wind ability Kcal/hr	60HZ	120,000	150,000	180,000
Ventilation amount	CMM	100	125	150
Cold-wind Caliber	mm	ψ300	ψ300	ψ300
Ice-water caliber	inch	3	3	3
Drain pipe caliber	inch	3/4	3/4	3/4
Dimension	mm	1,330×1,010×1,090	1,570×1,120×1,090	1,700×1,120×1,090
Weight	kg	270	290	310

Positive Pressure Blown Film Cooler

BFC

Positive Pressure Blown Film Cooler

BFC
